Scope of Application

Take TXCPS Control Protective Switch as the main switch, combined with mechanical interlock and electrical interlocking accessories, to constitute TXCPSN Electrical Control Box (reversible control and protection switch devices), suitable for reversible or two-way control and protection of motor. The main circuit parameters and the accessories module of the Electrical Control Box are the same as the basic type.

Models and Specifications of TXCPSN Electrical Control Box

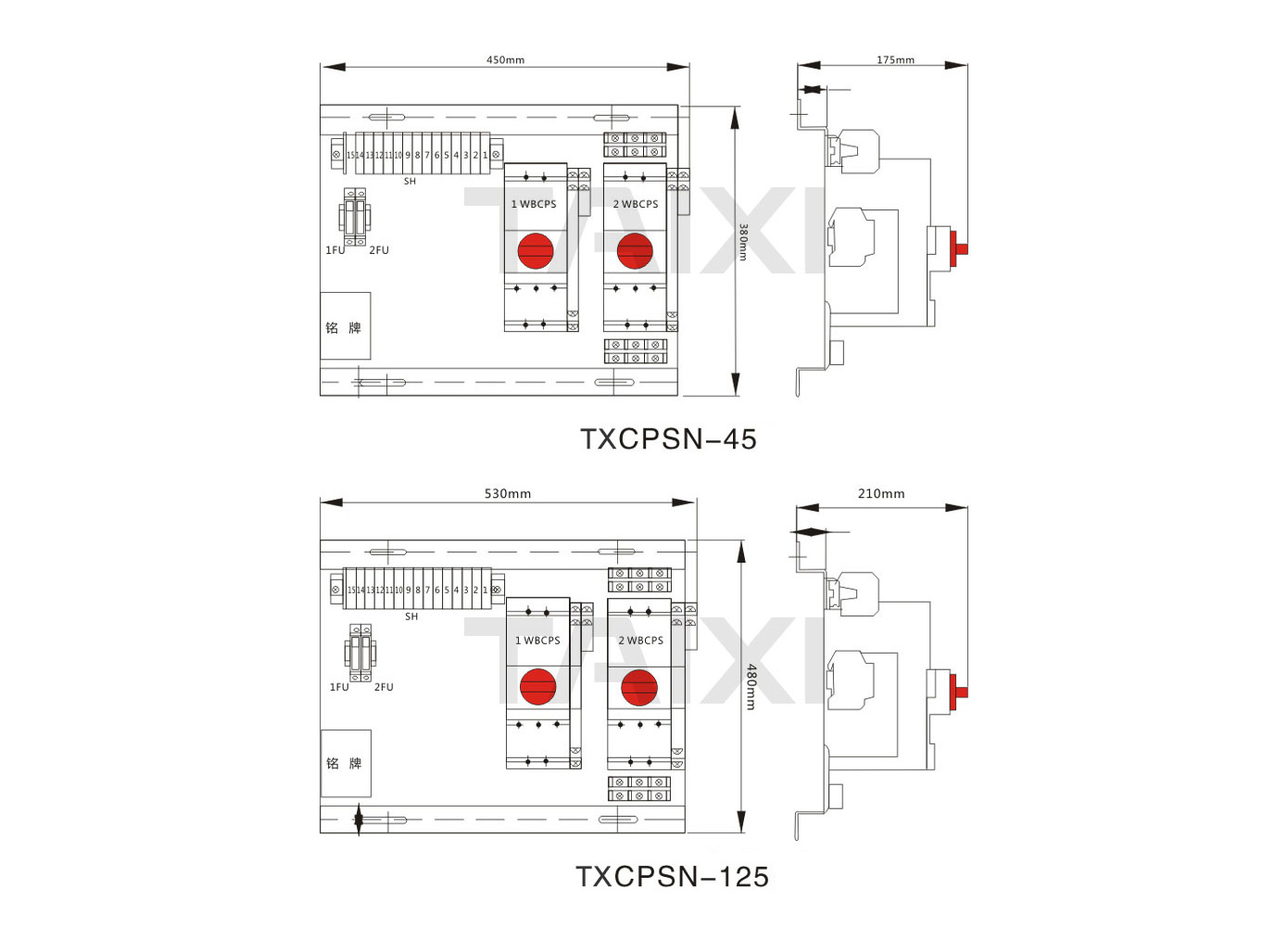

Product outline dimension

Reversible operation control circuit diagram of motor

Secondary power Power protection Power signal

Motor negative rotation

local and remote manual

control and operation signal

Master stop

Motor positive rotation

local and remote manual

control and operation signal

Alarm signal
Short circuit Fault

Note:
① This graph is suitable for the reversible operation control of all kinds of motors, using both local and remote manual control.
② Selection of Electrical Control Box is decided by engineering design.
③ Introduced positive & negative rotation start-stop button group can be installed on the box or wall.

No. Symbol Name Models and Specifications Quantity Remark
1 FU Fuse RT18-32X/4A 1 With fuse indication
2 CPSN Reversible motor controller CPSN-□□/M□/09+02M 1
3 HG1.2 Green light AD11-22/20~220V 2
4 HB Blue light AD11-22/20~220V 1

Increase or decrease

as required

5 HY Yellow light AD11-22/20~220V 1

Increase or decrease

as required

6 HW White light AD11-22/20~220V 1

Increase or decrease

as required

7 SF1.2,SS1

Positive & negative

rotation start-stop button

LAY3(1 normally open 1 normally closed) 3
8 SF3.4,SS2

Introduced positive & negative

rotation start-stop button group

Decided by engineering design 1
