Scope of Application

CJX2 Contactor (LC1) (AC/DC contactor, hereinafter referred to as contactor), mainly used for the circuit of AC 50Hz (or 60Hz), the voltage to 660V, the rated operating current to 95A in the utilization category of AC-3, 400V (380V), for the remote on and off circuit, frequent start and control AC motor, and combine with the appropriate thermal relay to form electromagnetic starter to protect the circuit may occur overload operation.

CJX2 Contactor (LC1) (AC/DC contactor) meets standards of IEC60947-4-1, GB14048.4.

AC/DC contactor model of Schneider LC1 AC/DC contactor model of TAIXI CJX2
LC1-D09M7C CJX2-09
LC1-D12M7C CJX2-12
LC1-D18M7C CJX2-18
LC1-D25M7C CJX2-25
LC1-D32M7C CJX2-32
LC1-D40M7C CJX2-40
LC1-D50M7C CJX2-50
LC1-D65M7C CJX2-65
LC1-D80M7C CJX2-80
LC1-D95M7C CJX2-95

Model and meaning

Some common models: CJX2-0910 CJX2-0901 CJX2-1210 CJX2-1201 CJX2-1810 CJX2-1801 CJX2-2501 CJX2-2510 CJX2-3201 CJX2-3210 CJX2-4011 CJX2-5011 CJX2-6511 CJX2-8011 CJX2-9511

Normal operating conditions and installation conditions

1. Ambient air temperature: -5℃~+40℃, the average does not exceed +35℃ within 24 hours.
2. Altitude: not more than 2000m.
3. Atmospheric conditions: the maximum temperature is +40℃, the relative humidity is not more than 50%; at lower temperatures can allow a higher relative humidity, for example, +20℃ up to 90%, special measures should be taken for condensation produced occasionally due to temperature changes.
4. Pollution level: 3.
5. Installation category: Ⅲ.
6. Installation conditions: The inclination of the installation surface and the vertical plane is not more than ±5°.
7. Shock Vibration: The product should be installed and used in the place without significant shaking, shock and vibration.
8. Installation method: Except for screw installation, but also 35mm standard card rail installation. AC operation 40-95 can installed in 35mm or 75mm card rail.

Main parameters and technical performance

4.1、JCX2 AC contactor of the main parameters and technical performance indicators (see Table 1).

Model CJX2-09 CJX2-12 CJX2-18 CJX2-25 CJX2-32 CJX2-40 CJX2-50 CJX2-65 CJX2-80 CJX2-95
Rated operating current
(A)
380/400V AC-3 9 12 18 25 32 40 50 65 80 95
AC-4 3.5 5 7.7 8.5 12 18.5 24 28 37 44
600/690V AC-3 6.6 8.9 12 18 21 34 39 42 49 49
AC-4 1.5 2 3.8 4.4 7.5 9 12 14 17.3 21.3
Conventional free air heating current(A) 20 20 32 40 50 60 80 80 95 95
Rated insulation voltage(V) 690

Controllable three-phase

squirrel cage motor power
(AC-3)kW

220/230V 2.2 3 4 5.5 7.5 11 15 18.5 22 25
380/400V 4 5.5 7.5 11 15 18.5 22 30 37 45
660/690V 5.5 7.5 10 15 18.5 30 37 37 45 45
Operating frequency
(times/h)
Electrical life AC-3 1200 1200 1200 1200 600 600 600 600 600 600
AC-4 300
Mechanical life
3600
Electrical life
(10000 times)
AC-3 100 100 100 100 80 80 60 60 60 60
AC-4 20 20 20 20 20 15 15 15 10 10
Mechanical life(10000 times) 1000 1000 1000 1000 800 800 800 800 600 600
Distribution fuse Model RT16-20 RT16-20 RT16-32 RT16-40 RT16-50 RT16-63 RT16-80 RT16-80 RT16-100 RT16-125
Cold-pressed terminal
Number 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2

Non-prefabricated

terminal flexible wire

mm² 1/2.5 1/2.5 1/2.5 1/2.5 1.5/4 1.5/4 1.5/4 1.5/4 2.5/6 2.5/6 6/25 4/10 6/25 4/10 6/25 4/10 10/35 6/16 10/35 6/16

Prefabricated

terminal flexible wire

1/4 1/2.5 1/4 1/2.5 1.5/6 1.5/4 1.5/10 1.5/6 2.5/10 2.5/6 6/25 4/10 6/25 4/10 6/25 4/10 10/35 6/16 10/35 6/16

Non-prefabricated

terminal hard wire

1/4 1/4 1/4 1/4 1.5/6 1.5/6 1.5/6 1.5/6 2.5/10 2.5/10 6/25 4/10 6/25 4/10 6/25 4/10 10/35 6/16 10/35 6/16
AC coil power 50Hz Pull-in(VA) 70 70 70 110 110 200 200 200 200 200
Hold(VA) 9.0 9.0 9.5 14.0 14.0 57.0 57.0 57.0 57.0 57.0
Power(W) 1.8~2.7 1.8~2.7 3~4 3~4 3~4 6~10 6~10 6~10 6~10 6~10
Operating range

Pull-in voltage: 85%Us~110Us;

Release voltage: 20%Us~75Us

Basic parameters of

auxiliary contact

AC-15:le:0.95A 380V/400V ;

DC-13:le:0.15A 220V/250V lth:10A

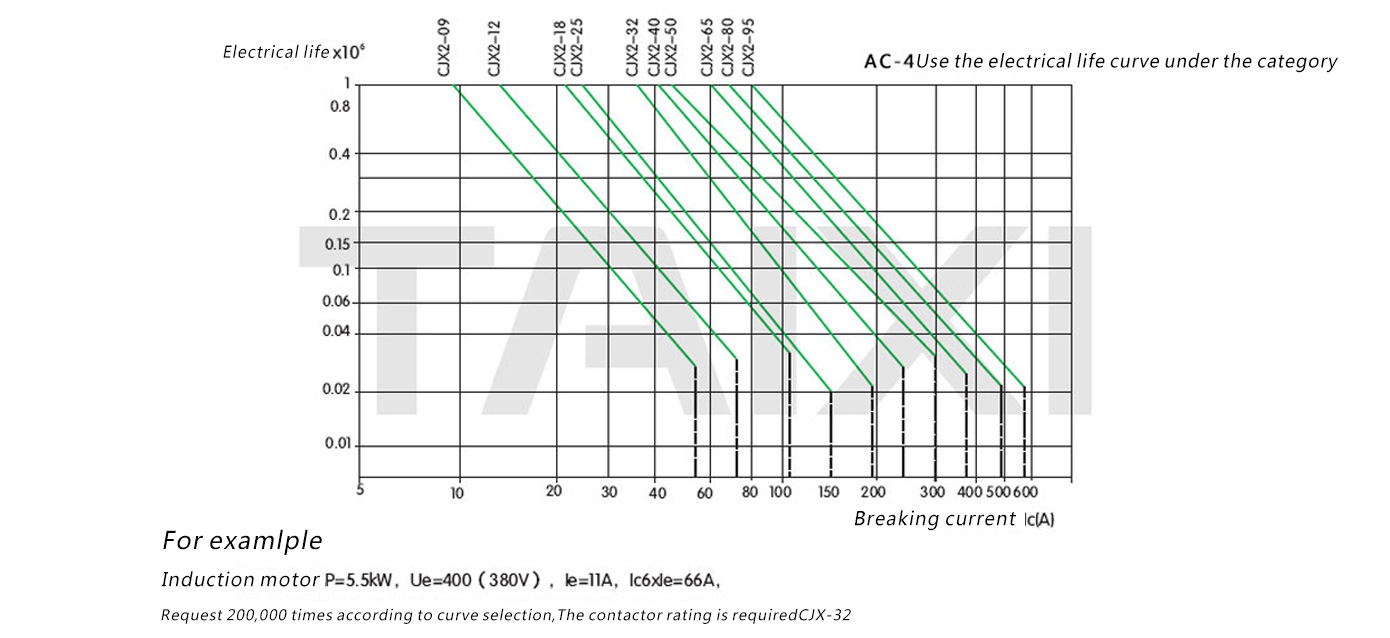

4.2 Electrical life curve.

4.3 Coil rated power supply voltage Us and code (see Table 2).

Coil voltage Us(V) 24 36 42 48 110 127 220 230 240 380 400 415 440 480 600
50Hz B5 C5 D5 E5 F5 G5 M5 P5 U5 Q5 V5 N5 R5 T5 X5
60Hz B6 C6 D6 E6 F6 G6 M6 P6 U6 Q6 V6 N6 R6 T6 X6
50Hz/60Hz B7 C7 D7 E7 F7 G7 M7 P7 U7 Q7 V7 N7 R7 T7 X7

Structural features

1. The contactor for the protective type, the action structure for the direct action, the contact for the double breakpoint, with a small size, light weight, low power consumption, long life, safe and reliable;

2. the AC/DC contactor can compose mechanical reversible interlocking magnetic starter, star delta decompression starter, can also compose a variety of derivative products with auxiliary contact group, air delay head and so on according to the users.

3. It can use building block installation to add auxiliary contact group, air delay head (the delay range shown in Table 4), thermal relays and other accessories, combined into a variety of derivative products (see Table 3).

4. SR2 series surge suppressor with a significant function of surge suppression, and used with CJX2 series contact, can effectively protect the contactor to extend the service life. And can avoid interference from the surge pulse to the PC and other related electronic control system.

SR2-A for CJX2 series 09A ~ 32A AC/DC contactor, the specific specifications are:
SR2-A 24V~48V AC, DC
SR2-A 100V~250V AC, DC
SR2-A 380V~440V AC, DC

5. The AC/DC contactor has a small size, light weight, low power consumption, high life, safe and reliable and so on.


6. The AC/DC contactor body has a pair of normally open or normally closed auxiliary contact in the 32A and below, a pair of normally open and normally closed auxiliary contact in the 40A and above. In addition, it can add F4 auxiliary contact group (two or four groups) or air delay head on the top, add a NCF1-11C on either side, their combinations (see Table 4 and Table 5).


7.Except for the screw installation, the contactor can also use 35mm (CJX2-09 ~ 95) and 75mm (CJX2-40 ~ 95) concave standard rail installation.

Model Delay range Number of delay contacts Diagram Table 4
F5-T0 0.1s~3s NO+NC
F5-T2 0.1s~30s
F5-T4 10s~180s
F5-D0 0.1s~3s
F5-D2 0.1s~30s
F5-D4 10s~180s

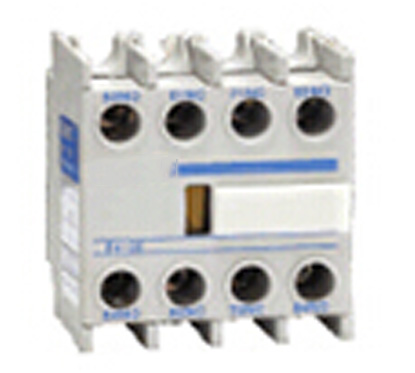

Auxiliary contact group model Number of contacts Diagram

Number of contacts

normally open (NO)

Number of contacts

normally closed (NC)

F4-20 2 0
F4-11 1 1
F4-02 0 2
F4-40 4 0
F4-31 3 1
F4-22 2 2
F4-12 1 3
F4-04 0 4
NCF1-11C 1 1

Installation and maintenance

1. Before installation, check the relevant technical data.
2. Installation, it should be installed in accordance with the conditions as prescribed, in line with people's visual habits.
3. The AC/DC contactor with metal mounting plate should properly ground .
4. Terminal screws should be tightened, after check the wiring is correct, in case of the charged main contact, first, it makes attracting coil power-on and on-off several times, after the test action is reliable, it can be put into use.
5. If there is abnormal noise when using, it may be dirt on the core pole surface, please wipe the surface.
6. In use, should regularly check the product components, requiring no moving parts of the jam, fasteners without loosening, if any parts are damaged, should be replaced.

Use the connection method

1. Three-phase contactor generally has eight points in total, three-input, three-output, and two control points. Output and input are the corresponding, it is easy to see. If you want to add self-locking, then you need to connect a line from the terminal of output to the control point.


2. First of all, should know the principle of AC/DC contactor. It adds to the coil by external power supply, to produce electromagnetic fields. Power-up and pull-in, contact points are cut-off after power-off. Know the principle, you should figure out the power supply contacts of additional power supplies, which is the two contacts of the coil, generally in the lower part of the contactor, and on the each side. The other input and output are generally in the upper, look to know. Also note what is the voltage of the additional power supplies (220V or 380V), which are generally marked. Also note that the contact point is normally closed or normally open. If there is self-locking control, just tidy up lines according to the original principle.


When the coil is energized, the static core produces electromagnetic force, to pull in the moving core, because the contact system is linked with the moving core, so the moving core drive three moving contacts running at the same time, contact closure, which connected power supply. When the coil power-off, the suction disappears, moving core linkage part is separated by the spring reaction force, so that the main contact is disconnected, cut off the power.

Outline and installation dimensions

Product outline and installation dimensions (see Figure 1, Figure 2 and Table 6).

Size: mm

Model A max B max C max D max E max a b φ
CJX2-09~12 47 76 82 120.5 140.5 34/35 50/60 4.5
CJX2-18/CJX2-1810/CJX2-1801 47 76 87 125.5 145.5 34/35 50/60 4.5
CJX2-25 57 86 95 133.5 153.5 40 48 4.5
CJX2-32 57 86 100 138.5 158.5 40 48 4.5
CJX2-4011~6511 77 129 116 154.5 174.5 40 105 6.5
CJX2-4004~6504 84 129 116 154.5 174.5 40 105 6.5
CJX2-4008~9511 84 129 127 154.5 174.5 40 105 6.5
CJX2-8011~9511 87 129 127 165.5 185.5 40 105 6.5
CJX2-8004~9504 96 129 122 160.5 180.5 40 105 6.5
CJX2-8008~9508 96 129 135 160.5 180.5 40 105 6.5
