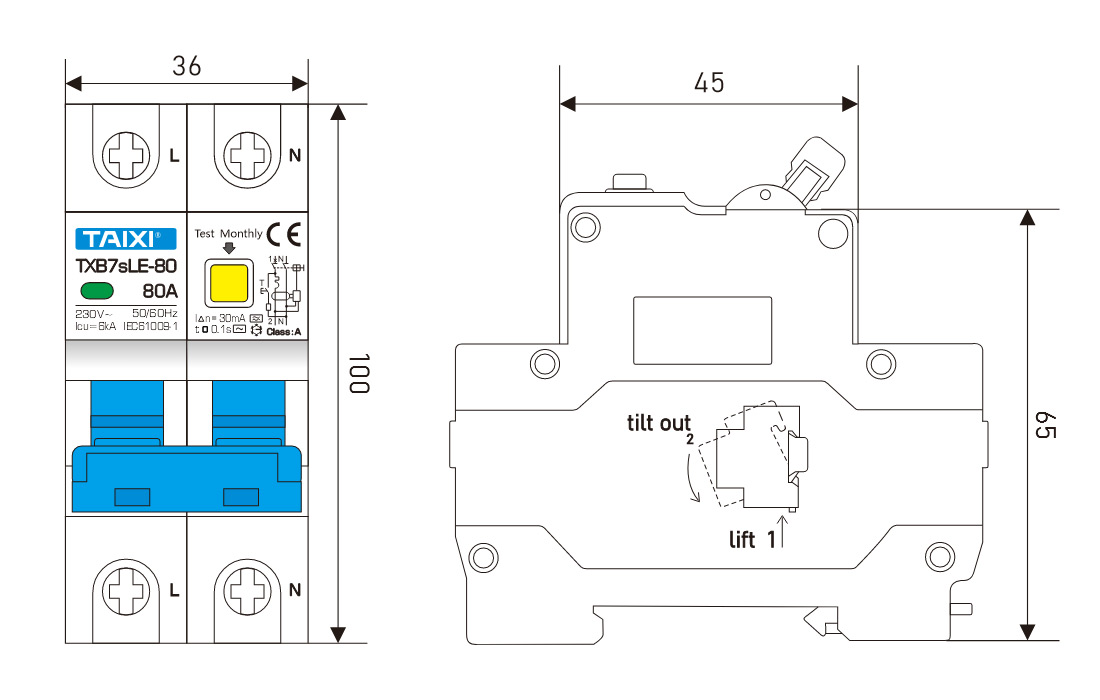

  • Size&weight

  • Related

  • Video

  • Message

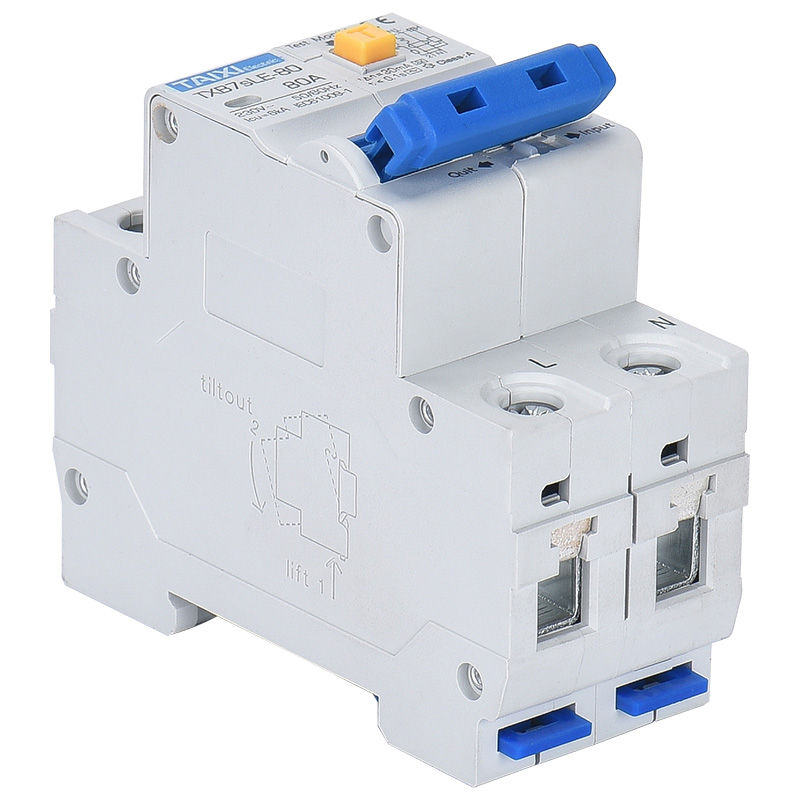

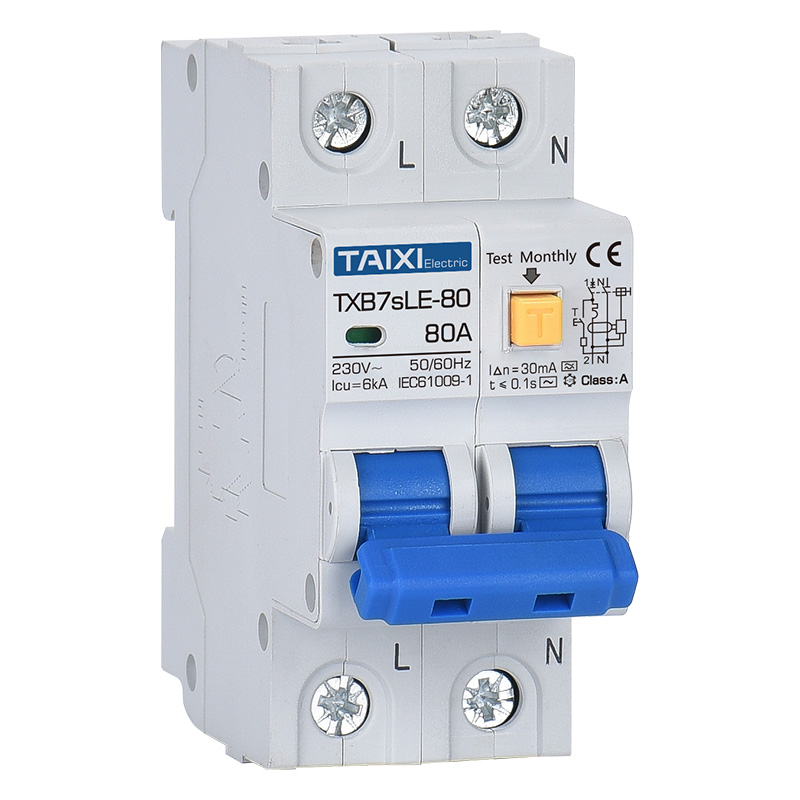

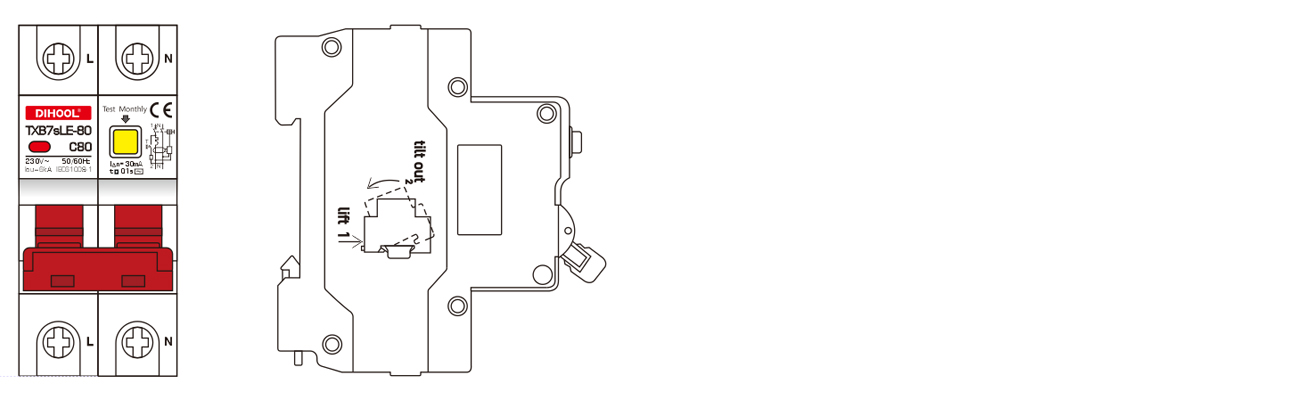

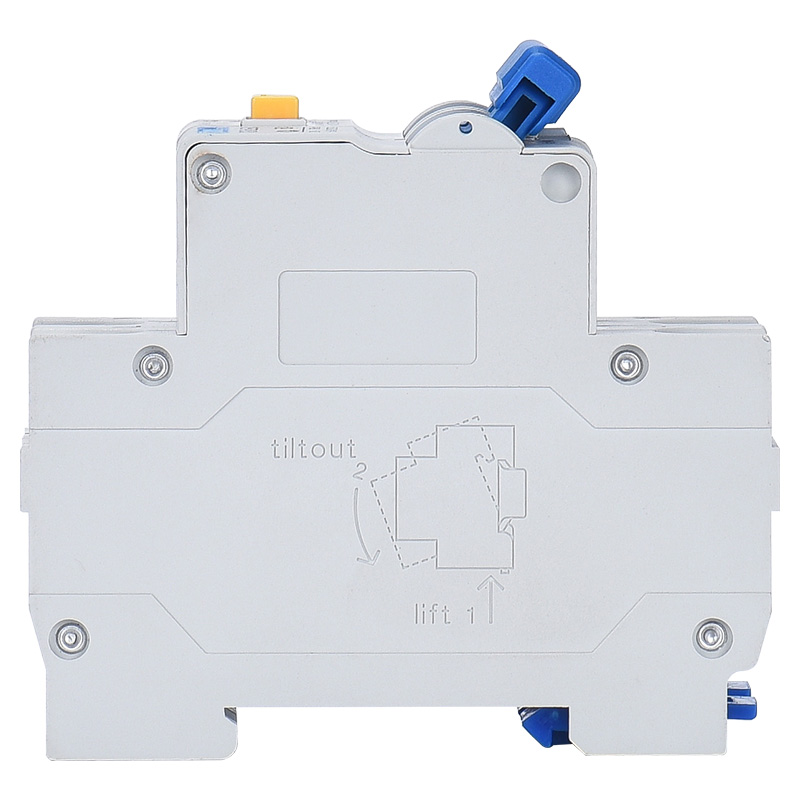

The new self-developed leakage circuit breaker of TXB7sLE is a very narrow and small leakage circuit breaker. The width of the conventional 2P leakage circuit breaker is 81MM wide. Our product is only 36MM wide, which reduces the size of the distribution box and saves space and money. This product is suitable for AC 50/60Hz, rated working voltage 230V or 110V, rated current 10A-63A, mainly composed of zero-sequence current transformer, electronic component board, leakage integrated circuit board, small circuit breaker with overload , Small circuit breakers with short circuit and leakage protection functions can provide protection against fires caused by ground faults that persist when overcurrent protection devices do not operate. The leakage protection of TXB7sLE leakage circuit breaker is divided into AC type and A type; AC type is a circuit breaker for conventional protection of household leakage circuit; A type leakage protection includes the function of AC type leakage protection, and also has pulsating DC (is some through AC to DC). Equipment such as mobile phone chargers, electric vehicle chargers, switching power supplies and other equipment) leakage protection function; Closable leakage circuit breakers are more and more popular in the low-voltage power distribution system by the State Grid, and leakage circuit breakers must be installed in the power security inspection. However, in some environments, leakage protection is often consistent because of humidity or in humid environments such as basements. Jump turns, then this product can turn off the leakage protection function can play the function of overload protection and short circuit protection, and can pass the power inspection at the same time.


When the ambient temperature is not a benchmark of 30 degrees , the reference correction factor is as folows .

Ambient Temperature -20℃ -10℃ 0℃ 10℃ 20℃ 30℃ 40℃ 50℃ 60℃
Current Correction Coefficient 1.25 1.20 1.15 1.10 1.05 1.00 0.95 ..90 0.85


Rated Current 6A,10A,16A,20A,25A,32A,40A,50A,63A
Poles 1P+N
Rated Voltage Ue AC110V or ac220V
Insulation Volage Ui 500V
Rated Breaking Capacity 4500A
Rated Impulse Withstand Voltage Uimp 4kV
Dielectric Test Voltage At And Ind. Freq.For 1min 2kV
Protection Class IP20
Thermo-Magnetic Release Characteristic C-Curve (5In ~ 10In)
Electrical Life 4000
Mechanical Life 20000
Installation 35MM DIN Rail Mount or M3 Screw Side Mount
Reference Temperature For Setting Of Thermal Eement 30°C
Ambient Temperature -5°C~40°C
Terminal Connection Type Phillips Screws
Adapter Cable 6-63A 1-25MM²;16-3AWG
Tightening Torque 3.0N.M
Tightening Torque 3.0N.M



Rated current (A) Minimum Adapter Copper Wire
6 1 MM2/17AWG
10 1.5 MM2/16AWG
16 1.5 MM2/16AWG
25 2.5 MM2/13AWG
32 4 Mm2/11AWG
40 6 Mm2/10AWG
50 10 MM2/7AWG
63 16 MM2/7AWG
