Scope of Application

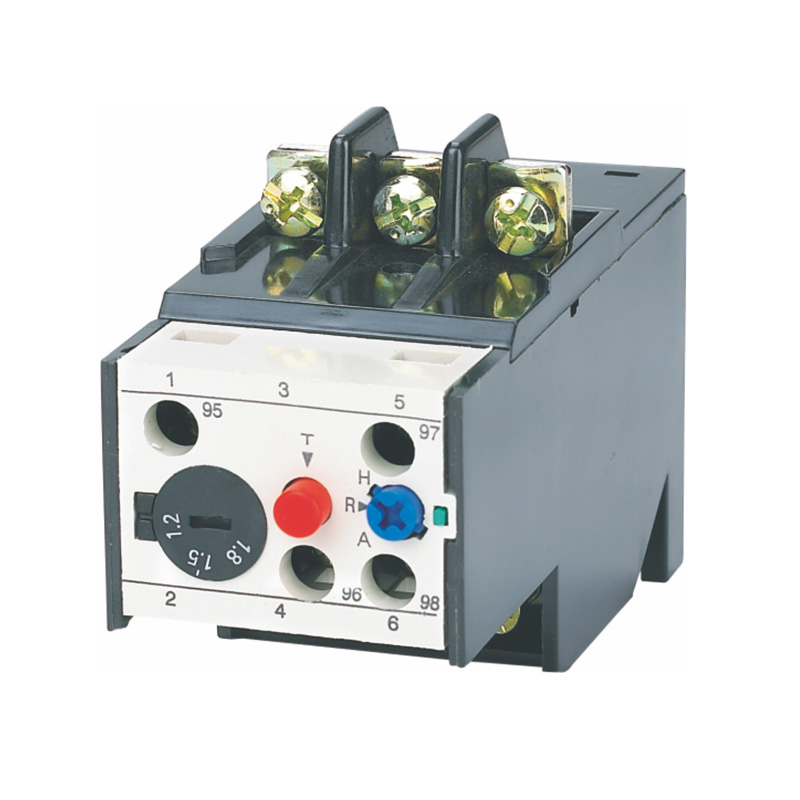

JR20 thermal overload relay is suitable for AC 50Hz, voltage to 690V, current to 630A circuit, used as AC motor overload, phase failure and three-phase serious imbalance protection. With phase failure protection, temperature compensation; manual or automatic reset; action trip flexibility check; action trip indication;
Meet the GB14048.4 standard.

Main specifications



Model With AC contactor Model With AC contactor
JR20-10 CJ20-10 JR20-160 CJ20-100 CJ20-160
JR20-16 CJ20-16 JR20-250 CJ20-250
JR20-25 CJ20-25 JR20-400 CJ20-400
JR20-63 CJ20-40 CJ20-63 JR20-630 CJ20-630

Shape and installation dimensions



JR20-10Z、JR20-16Z、JR20-63Z、JR20-160

JR20-10L、JR20-16L、JR20-63L、JR20-160L

JR20-10GL、JR20-16GL、JR20-63GL、JR20-160GL
