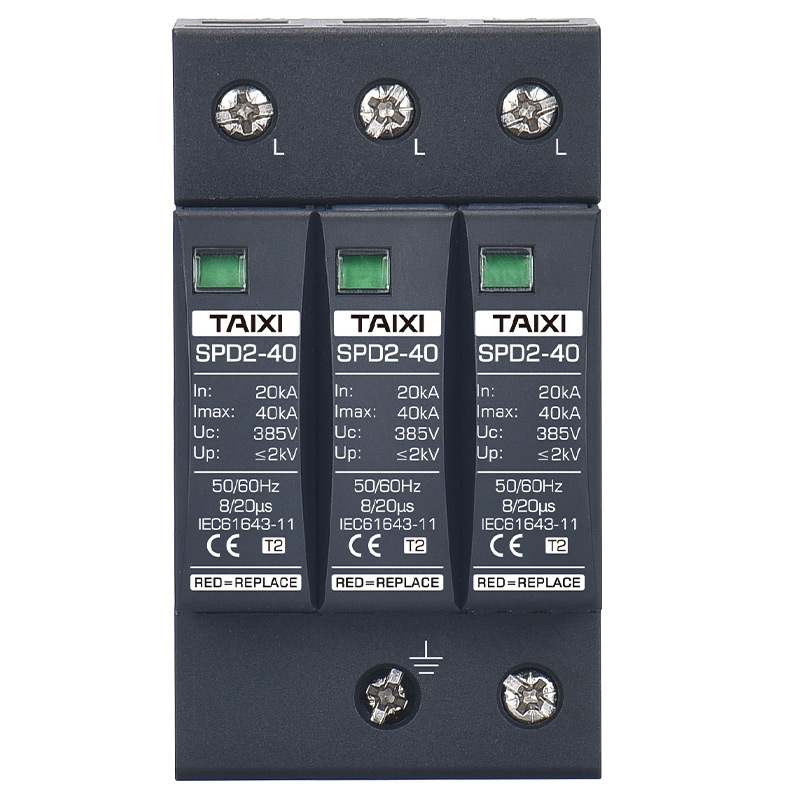

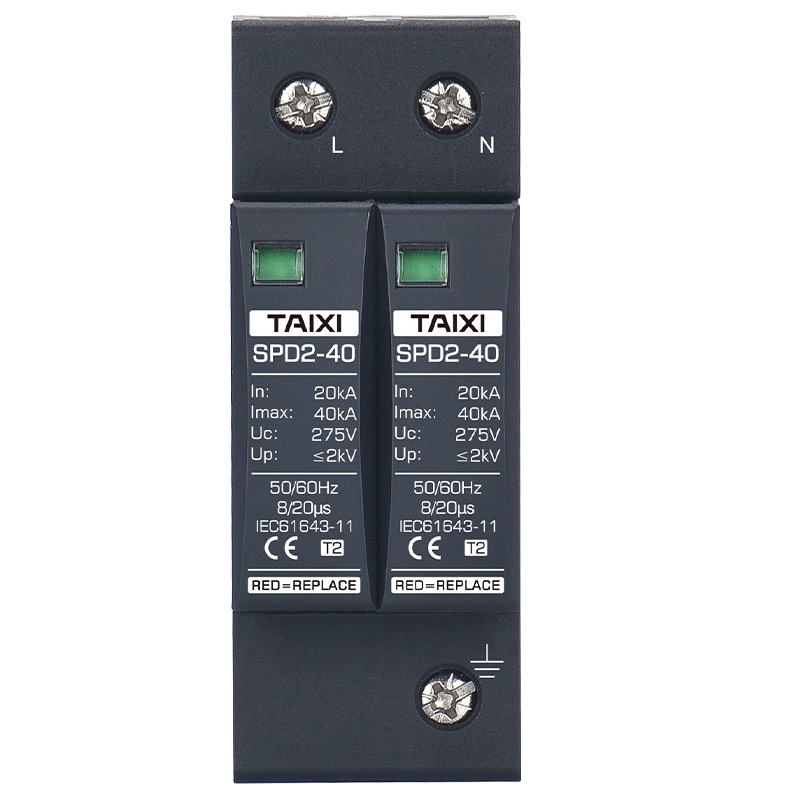

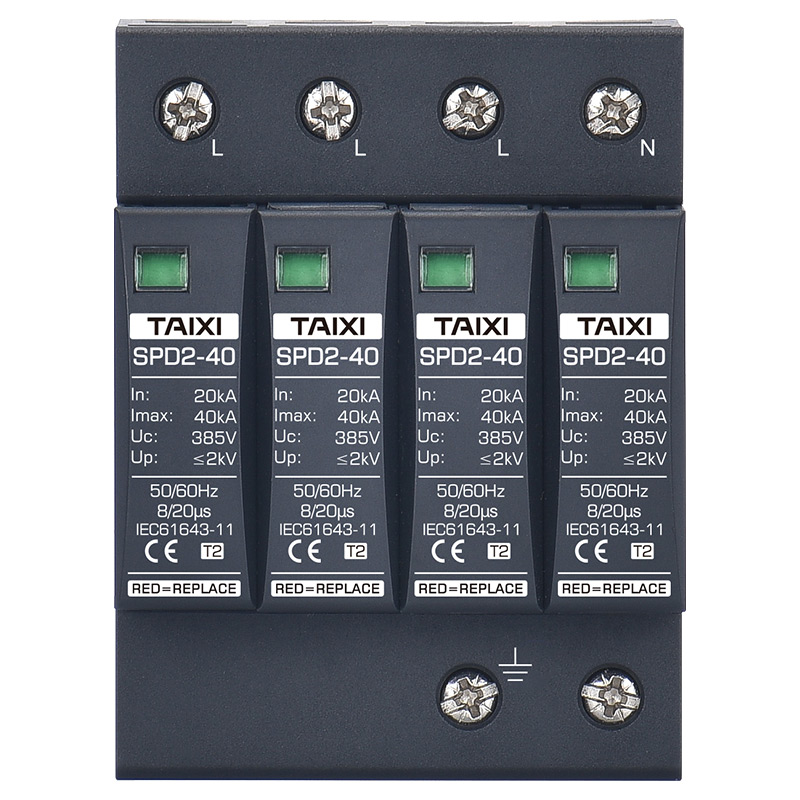

SPD2 Electrical Panel Surge Protector
Surge Protection Device | SPD
Parameters
Details
Size&weight
Related
Video
Message
SCOPE OF APPLICATIONV
SPD2 surge protection device is mainly used for lightning protection of DC power supply systems such as solar power generation system, wind power generation system and automobile power system. Spd1 surge protection device has an indication window to indicate whether the line is struck by lightning,Green means normal, If the red indicator shows that the line is struck by lightning, please replace the protector or module in time. The surge protection device is applicable to AC 50hz/60hz, the working voltage is 275V to 2000V
MAIN TECHNICAL PARAMETERS
| Discharge Current | 20kA, 40kA, 60kA |
| Poles | 2P,3P,4P |
| Working Voltage | DC 275V~DC 2000V |
| Working Status Indicator Window | green (working well), red (malfunction, product or module must be replaced) |
| Surge voltage level | 2.2kV-5kV |
| Protection Class | IP20 |
| Thermo-Magnetic Release Characteristic | B-Curve (3-5In) |
| Electrical Life | 4000 |
| Mechanical Life | 20000 |
| Installation | 35MM DIN Rail Mount or M3 Screw Side Mount |
| Reference Temperature For Setting Of Thermal lement | 30°C |
| Ambient Temperature | -40°C~+75°C |
| Terminal Connection Type | Phillips Screws |
| Tightening Torque | 3.0N.m |
| Adapter Cable | 6-63A 1-25mm² 16-3AWG | 80-125A 8-35mm² 16-2AWG |
| Combination With Accessories Auxillary Contact | |
| Auxillary Contact | Yes |
| Alarm Contact | Yes |
| Shunt Release | Yes |
| LossVoltage Release | Yes |

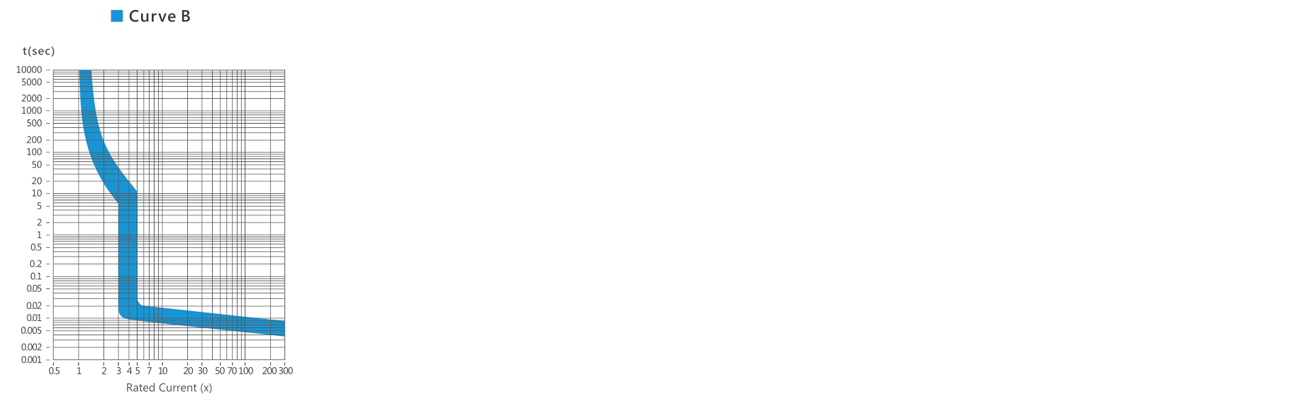

TRIPPING CHARACTERISTIC CURVE -- B TYPE
TEMPERATURE COMPENSATION
When the ambient temperature is not a benchmark of 30 degrees , the reference correction factor is as folows .
| Ambient Temperature | -20℃ | -10℃ | 0℃ | 10℃ | 20℃ | 30℃ | 40℃ | 50℃ | 60℃ |
| Current Correction Coefficient | 1.25 | 1.2 | 1.15 | 1.10 | 1.05 | 1.00 | 0.95 | 0.90 | 0.85 |
CONNECTION
| Rated current (A) | Minimum Adapter Copper Wire |
| 6 | 1 MM2/17AWG |
| 10 | 1.5 MM2/16AWG |
| 16 | 1.5 MM2/16AWG |
| 25 | 2.5 MM2/13AWG |
| 32 | 4 Mm2/11AWG |
| 40 | 6 Mm2/10AWG |
| 50 | 10Mm2/7AWG |
| 63 | 10Mm2/7AWG |
| 80 | 16Mm2/5AWG |
| 100 | 25Mm2/4AWG |
| 125/150 | 35Mm2/2AWG |

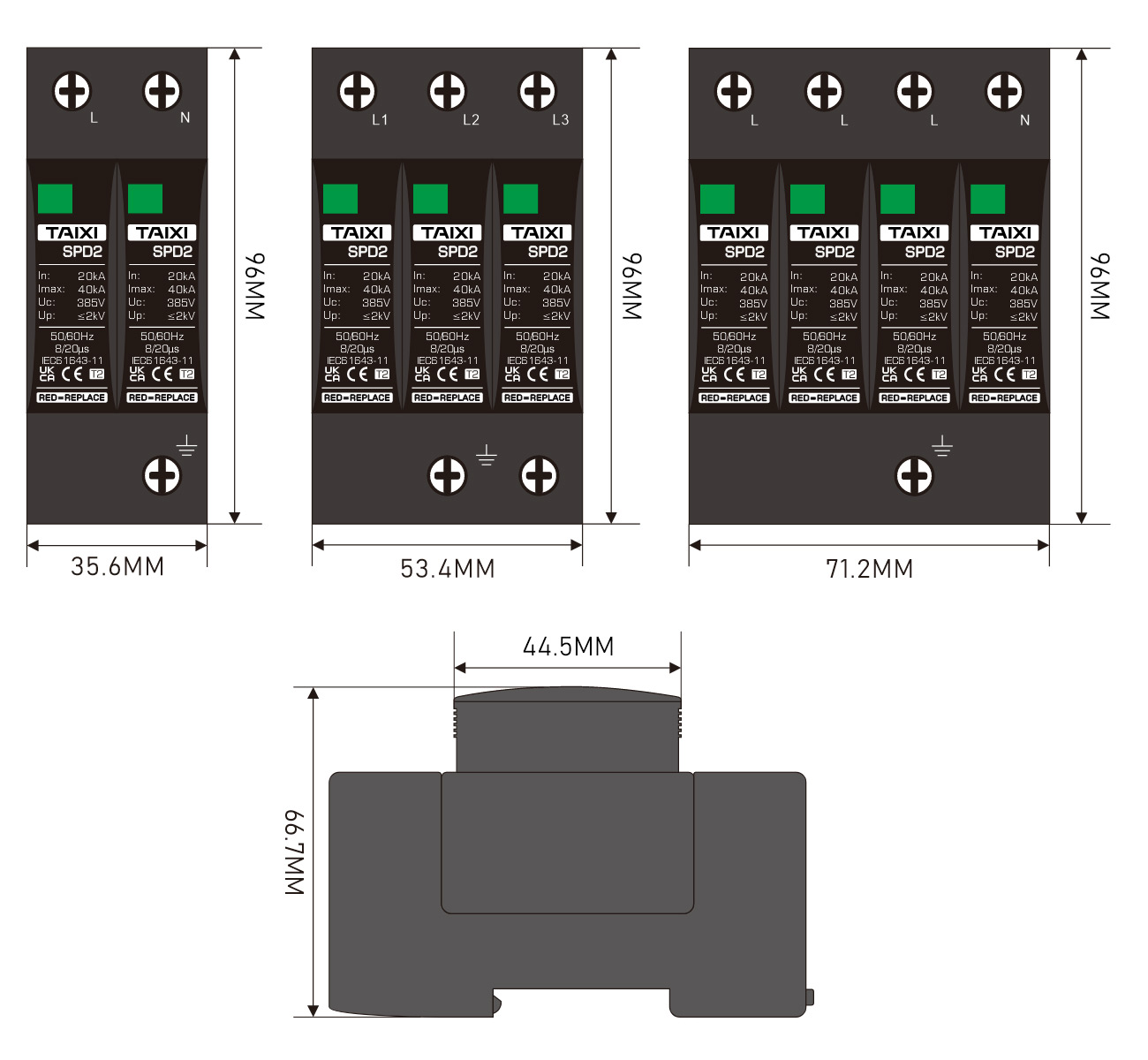

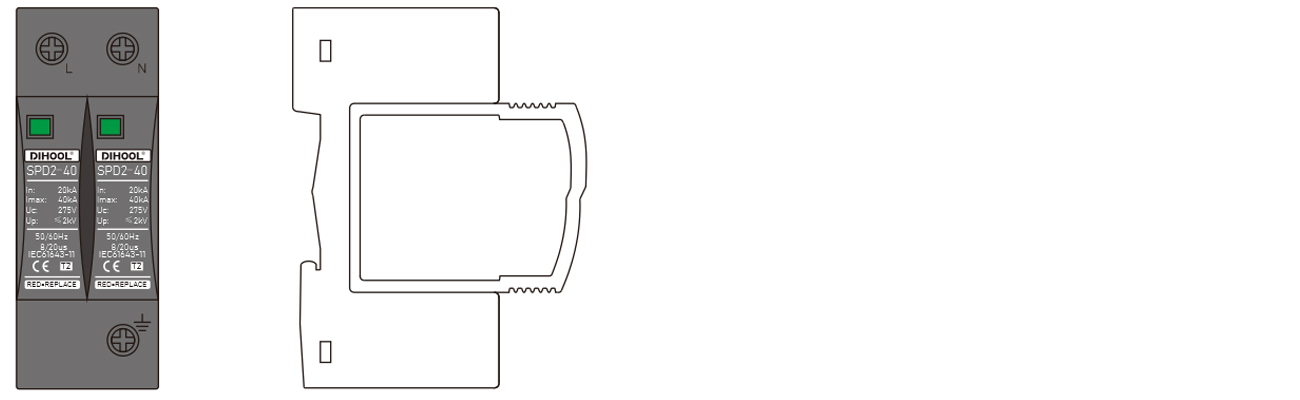

OUTLINE AND INSTALLATION DIMENSIONS
